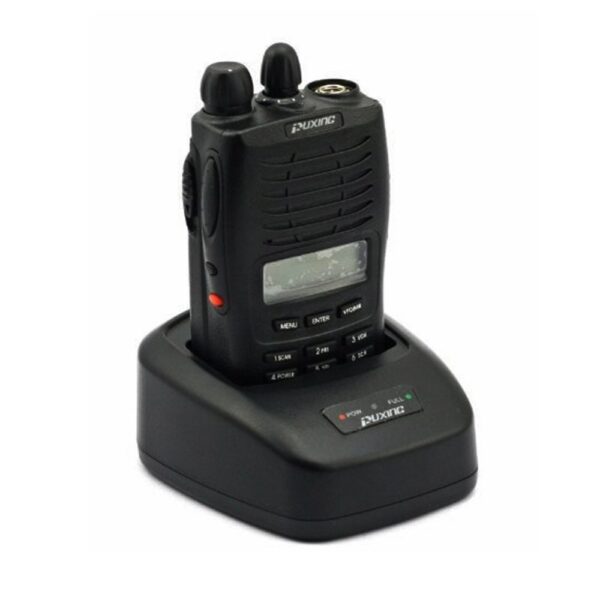

Puxing PX-777 Handheld Two Way Radio VHF136-174 or UHF 400-470Mhz PX777 5W Walkie Talkie

Note:  if you need the software, please contact us.

Feature

128 Groups of memory channels

50 Groups of CTCSS and 104 Groups of DCS

Wide(25kHz) and Narrow(12.5kHz) available

Come with 1200mAh Li-ion battery

Input Freq. By using keypad

VOX built-in

Scan function

Three color LCD backlight display

Emergency Alarm

Programmable by PC

Bell ring when receiving signal

Priority Scan Function

Adjust power Hi/Lo

Switching between Channel/Freq.

Adjust squelch level(0-9)

Busy channel lockout

Keypad lock

Technical Specification

General Specifiction:

Frequency Range: PX-777   UHF:400-480Mhz

Channels: 128

Channel Steps: 5k,10k,6.25k,12.5k,25k

Power Supply: 7.2V 1200mah LI-ion

Operating Temperature: -20°C ~ +60°C

Communication Range: 8 ~20km

Dimension (H x W x D): 100 x 55.5 x 31mm

Weight: 225g

Receiver Specifiction:

Sensitivity < 0.20KV

Selectivity: 65dB

Intermodulation Rejection: 60dB

AF Output: 500mW

Standby Current: 35mA

Transmitter Specifiction:

Power Output: (VHF)5W

Modulation Type: F3E

Spurious Emission < -65dB

Transmit Current: 1300mA/750mA

Max. Deviation: ±5kHz

Modulation Distortion < 5%

Frequency Stability: ±2.5ppm

Packing Content

1x PX-777 VHF136-174MHz Radio OR 1x PX-777 UHF400-470MHz Radio

1x Antenna

1x 1200mAh Li-ion Battery

1x Charger with Adaptor (110-240V US type or 220V EU plug)

1x Belt clip

1x English User manual

1x Hand strip

1x Packing Box
