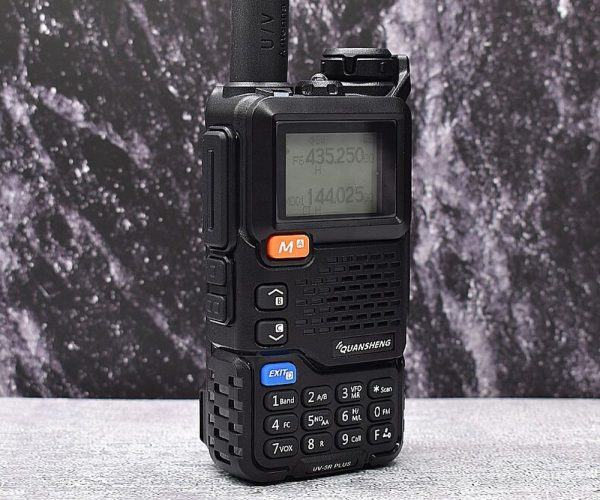

Quansheng UV-5R Plus Walkie Talkie UHF VHF DTMF FM Scrambler NOAA Air Band Radio

Sale!
, ,

Quansheng UV-5R Plus Walkie Talkie UHF VHF DTMF FM Scrambler NOAA Air Band Radio

Original price was: $45.00.Current price is: $28.68.

& Free Shipping
Quantity Discount (%) Price
1 $28.68
2 - 4 4.25 % $27.46
5 - 9 10.46 % $25.68
10+ 16.39 % $23.98

Quansheng UV-5R Plus Walkie Talkie 5W Air Band Radio Charge UHF VHF DTMF FM Scrambler NOAA Wireless Frequency Two Way CB Radio

Description:
[ 200 Channel ] – [ Cross-Band Intercom ]
[ 1750HZ Call Tone ] – [ Program On Site ]
[ Emergency Alert ] – [ Reverse Frequency Function ]
[ 10-Group Scrambler ] – [ Multi-Scan ]
[ CTCSS/DCS ] – [ 10 Emergency Weather Channels ]
[ PC Programmable ] – [ Busy Channel Lock ]
[ VOX ] -[ Frequency And Channel Mode Shift ]
[ Time-Out-Timer ] – [ Wireless Radio Replication ]
[ Large LCD Display ] – [ Voice Prompt ]
[ Reminding Switch ] – [ Remote Kill/Revive ]
[ Power-on Password Protection(By PC Programmable)]
[ AM/FM Aviation Band Receiving ] – [ FM Radio ]
[ Charger-Base Charging ] – [ Wide/Narrow Bandwidth ]
[ Offset Frequency Direction Set ] – [ Reset ]
[ Squelch Level Adjustable ] – [ Dual-watch operation ]
[ Offset Frequency Setting ] – [ Channel Scan And Add ]
[ Automatic Signaling Search ] – [ Multi Step Frequency ]
[ One Key Call Channel ] – [ Keypad Lock ]
[ Backlight Auto Off Time Selective ]- [ Jacklight ]
[ DTMF Calling ] – [ DTMF ANI ]
[ DTMF Select Call (single call, group call, all call) ]
[ Repeater Forwarding Confirmation Function ]
[ Multi Display Of Channel No./Channel Frequency/Channel Name ]
[ H (High),M (Medium),L (Low) Output Power Selective ]
[ Multi-Band Transmitting & 50∽600MHz Receiving ]
[ Receive/Transmit Code Setting Separately ]
[ High Capacity Battery\Long Standby Time ]
[ Fast Copy One Channel(ACT AS FREQUENCY METER (FOR TWO-WAY RADIO & SOME OTHER DEVICES) ]

Fast Copy Frequency .
Fast Copy One Channel .
Act As Frequency Meter For Two-Way Radio & Some Other Devices .
F+4, Turn On Frequency Copy .

Large LCD Display .
The large screen is clear, intuitive, and good-looking, with a clean button layout and easy to understand operation.

AM/FM Aviation Band Receiving .

NOOA weather reception .
10 Emergency Weather Channels .
Bring more convenience to your outdoor travel .
10-Group Scrambler .Encrypted Communication .
Multiple security encryption , Protect your call privacy and communication security .
Power-on Password Protection (By PC Programmable).
Frog sound ending tone .
Frog Sound Tail Tone .
After the walkie talkie transmission is completed, the receiving console emits a ‘Frog sound ‘ tail tone signal to indicate the end of the call .
DTMF .
Dual tone multi frequency signal , Simple fast and reliable transmission technology .
Many ways to scan .
Detect without knowing the frequency and CT/DCS used by the other party .
Cross-Band Receiving/Transmitting .

General Specifications:
Channel:200;
Stored FM Radio Channel Quantity:20;
NOAA Channel:10;
Frequency Stability:±1ppm;
Modulation Mode:FM:11KΦF3E(12.5KHz),16KΦF3E(25KHz);
Dimension:115mmX60mmX37.5mm;
Weight:234g;
Operating Temperature:-20℃+60℃;
Antenna Impedance:50Ω;
RECEIVING:
Sensitivity:FM(12dB SINAD);
F1(50∽76):-121dBm
F2(108∽135.9975):-121dBm
F3(136∽173.9975):-123dBm
F4(174∽349.9975):-123dBm
F5(350∽399.9975):-123dBm
F6(400∽469.9975):-123dBm
F7(470∽599.9975):-121dBm
WFM(20dB SINAD):WFM(76∽108)-110dBm
AM(10dB S/N):F2(108∽135.9975)
Audio Frequency:≥0.5W
Audio Distortion:≤10%
TRANSMITTING:
Output Power:≤5W;
Emission Current:≤1.5A;
Max Frequency Deviation:≤5KHz(25KHz),≤2.5KHz(12.5KHz);
Modulation Distortion:≤5%;
Stray Power:≤7.5uW;
Adjacent Channel Power:70dB(25KHz),60dB(12.5KHz);
Residual Modulation:40dB;

Specifications
Output Power(w): 3w-5w
Battery Capacity(mAh): 2200
Waterproof / Water-Resistant: No
Material: Plastic
Storage Channel: 200
Frequency Range: UHF:400-470MHz/VHF:136-174MHz
Dimensions: 115*60*37mm
Model Number: UV-5R PLUS
Walkie Talkie Type: Portable
Is_Display: Yes
Maximum Range: 3km-5km
Brand Name: Quansheng
Certification: CE,FCC,RoHS

Weight 0.5 kg
