NEW SURECOM Digital Radio Tester 27Mhz-3000Mhz
New Function for Digital Radio
Introduction:
The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator. it is the tool of choice for maintenance personnel,test frequency and signal strength of wireless enthusiasts.
This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.
There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.
Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
Feature & Specification:
Frequency range: 27Mhz-3000Mhz
CTCSS/DCS Decoder
LCD Dim level setting
Frequency digital 0000.000 or 0000.0000
Work by TCXO(Temperature Compensate X’tal (crystal) Oscillator) 2 – 2.5ppm
Rresponse time: 0.2s.
Color Display
Build-in Li-ion battery
Net Weight: 113g
4 buttons control
Auto power off 1-9minutes
Chaging battery LED indicator
(Do not direct Connection Walkie talkie RF output by cable ,HIGH RF output will damage FREQUENCY counter )
Specifications: |
|
|
|
TFT LCD: |
320 x 240 pixels |
Frequency Range: |
27Mhz -3Ghz |
Li-ion Battery build-in : |
3.7V 600mah |
current consumption: |
10ma |
TCXO crystal Oscillator |
+- 2.5ppm |
Change in: |
Micro usb +5V |
impedance input: |
50 Ohm (BNC) |
Weight: |
113g |
Dimensions size : |
70 x 30 x 90mm |

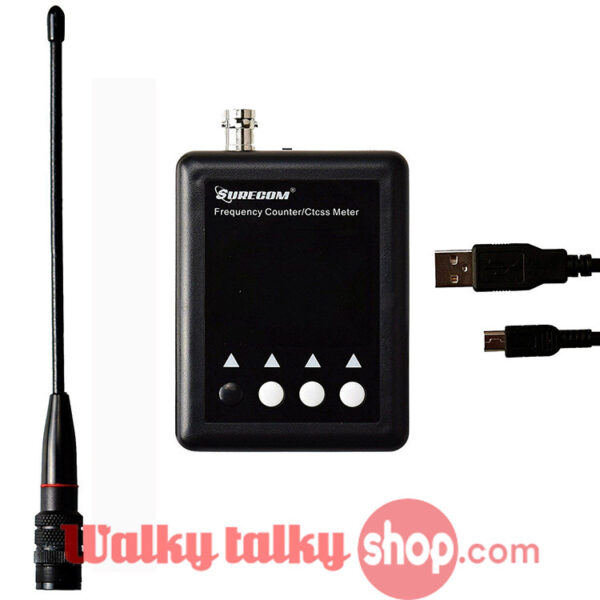

Package Contents
1x SURECOM SF401plus Frequency Counter
1 x UHF Antenna
1x User Manual
1x USB charger cable
1x USB AC adapter 100-240V
Send a corresponding plug acccording to your country
