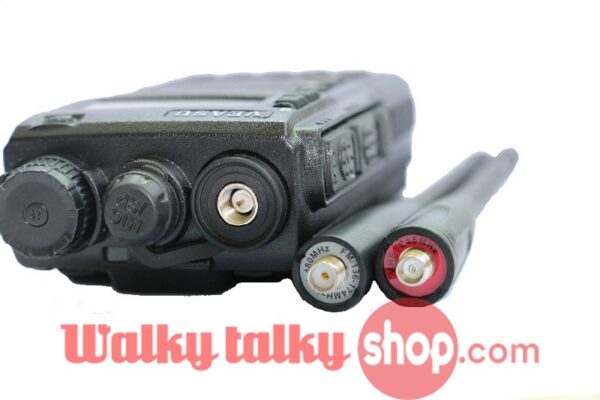

UV-8DR Triple Band Heavy Duty Submersible Transceiver Portable Radio
Description:
· Tri-Band 136-174/240-260/400-520mhz
· Emergency Alarm
· ANI CODE(PTT ID)
· FM Radio
· DTMF
· Low Battery Alert
· Squelch Tail Elimination
· Power. ≥5W
· Channel Annunciation
· Auto Power-savimg
· Multiple Scanning
· Sound Alarm
· Keypad lockout
· Full-function keypad
· Program alphanumeric channel name
· Large Capacity Li-ion Battery
· Busy Channel Lockout(BCLO)
· Squelch Level Programmable
· 128 memory channels
Detailed Specification:
Frequency Range
Tri-Band 136-174/240-260/400-520mhz
Channel Capacity
128
Frequency Stability
2.5ppm
Frequency Step
2.5kHz/ 5kHz/ 6.25kHz/ 10kHz/ 12.5kHz/ 25kHz
Antenna Impedance
50Ω
Operating temperature
–20°C to +60°C
Supply voltage
Rechargeable Lithium-Ion 7.4V/2200mAh
Consumption in standby
≤75mA
Consumption in reception
380mA
Consumption in transmission
≤1.4A
Mode of operation
Simplex or semi-duplex
Transmitter
RF Power
7W//2W
Type of modulation
FM
Emission class
16KφF3E/11KφF3E(W/N)
Maximum deviation
≤±5kHz/≤±2.5kHz(W/N)
Spurious emissions
<-60dB
Receiver
Receiver Sensitivity
0.2μV(at 12 dB SINAD)
Intermodulation
60dB
Audio output
1000mW
Adjacent channel selectivity
65/60dB
Package includes:
· 1 x UV-8DR Walkie Talkie Tri Band
· 1 x Battery 2200mah
· 1 x Antenna
· 1 x Battery Charger
· 1 x Belt Clip
· 1 x Operation Manual
