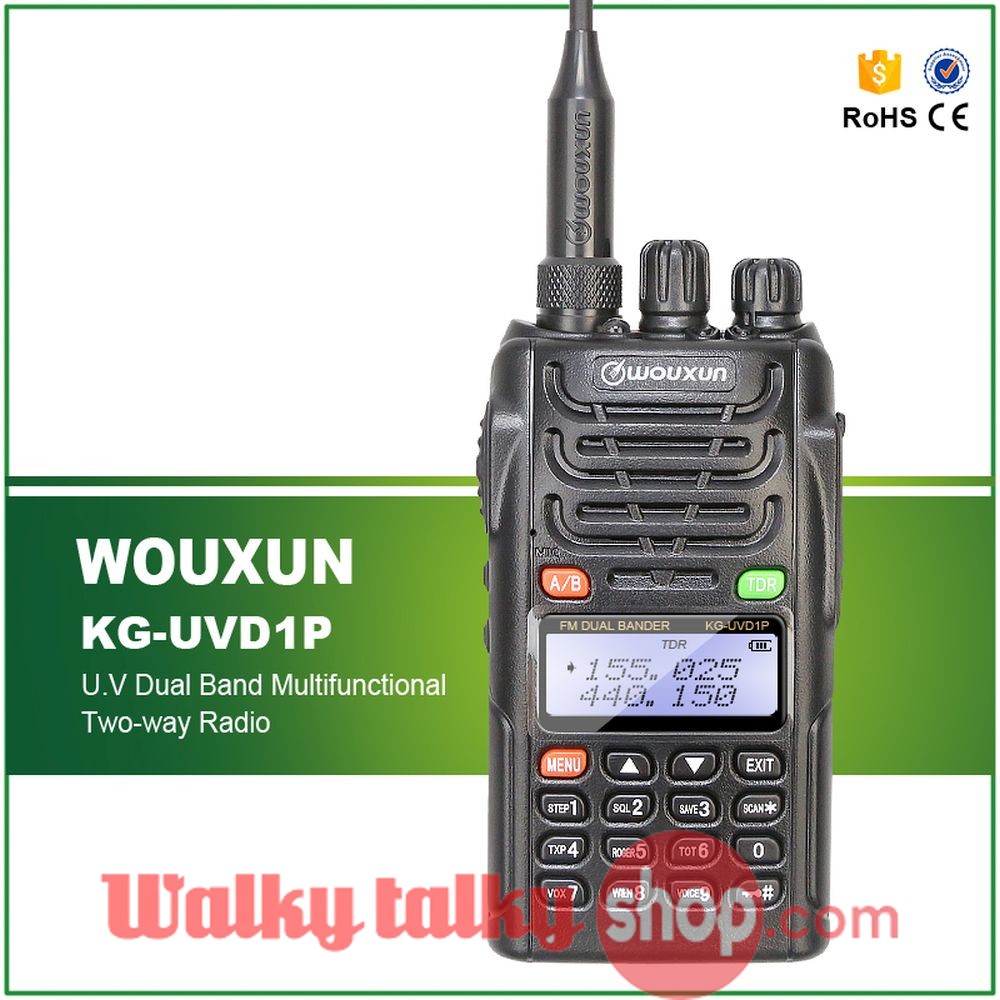

Dual Band Multifunctional KG-UVD1P Wouxun Two-way Radio DTMF UHF VHF Dual Display Dual Standby
KG-UVD1P 136-174 / 400-470Mhz
| KG-UVD1P Main Features .Dual Band .Dual Frequency, Dual Display and Dual Standby .VHF&UHF, UHF&UHF or VHF&VHF working modes .Frequency Range: 136-174MHz & 400-470MHz . Bright Flashlight Illumination Function . Voice Prompt (Chinese / English) . 128 memory channels . VOX Function . Digital FM radio (Automatic tuning and storing, radio frequency display) . High/Low power selection . Wide/Narrow Bandwidth selection (25KHz/12.5KHz) . Channel Name edit and display . 105 groups D.C.S/50 groups CTCSS . Stopwatch Function . Low-voltage voice prompt . Busy Channel Lockout . Transmit Over Timer . Step（5K/6.25K/10K/12.5K/25K/50K/100K） . Keyboard lock (Auto/Manual) . Multiple scan modes . Wire clone function . Programmable by computer |
| . DTMF |
Technical Specification
| Frequency range | Frequency range can be suitable for different countries or areas:
136-174/350-470MHz(RX/TX) 136-174/400-480MHz(TX/TX) 136-174/420-520MHz(TX/TX) 136-174/400-470MHz(TX/TX) 136-174/245-250MHz(TX/TX) 136-174/216-280MHz(TX/TX) 136-174/225-226MHz(TX/TX) 144-146/430-440MHz(TX/TX)
|
| Memory Channels | 128 Channels |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -30°C~+60°C |
| Waterproof | IP55 |
| Antenna Impedance | 50 |
| Dimension | 58*105*38mm |
| Weight | 250g |
| Transmitter | |
| Frequency stability | ±2.5ppm |
| RF Carrier Power | Within pre-determined value±7.5dB |
| Max. Frequency Deviation | Channel space: 25KHz ±5KHz
Channel space: 12.5KHz ±2.5KHz |
| Audio Modulation | +3dB(pre-emphasis by 6dB between 0.3-3KHz) |
| Adjacent channel power | Channel space: 25KHz≥70dB
Channel space: 12.5KHz≥60dB |
| Spurious Radiation | ≤30dBm |
| Inter modulation Attenuation | ≥40dB |
| Modulation Distortion | ≤10% |
| Residual FM | ≤-35dB |
| Residual FM | ≤3% |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.16μV |
| Squelch rejection Sensitivity | ≤0.8μV |
| Squelch Sensitivity | ≤0.2μV |
| Audio output power | 500mW |
| Audio Distortion | ≤5% |
| Audio Response | (300-3000Hz)+1 to -3dB |
| Co-channel Rejection | ≥-8.0dB |
| Performance of Amplitude Limited | ≤3 |
| Adjacent Channel Selection | Channel space: 25KHz≥70dB
Channel space: 12.5KHz≥60dB |
| Inter-modulation | ≥65dB |
| Resistance | ≥84dB |
| Spurious Radiation | 9Khz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm |
|
|
|
