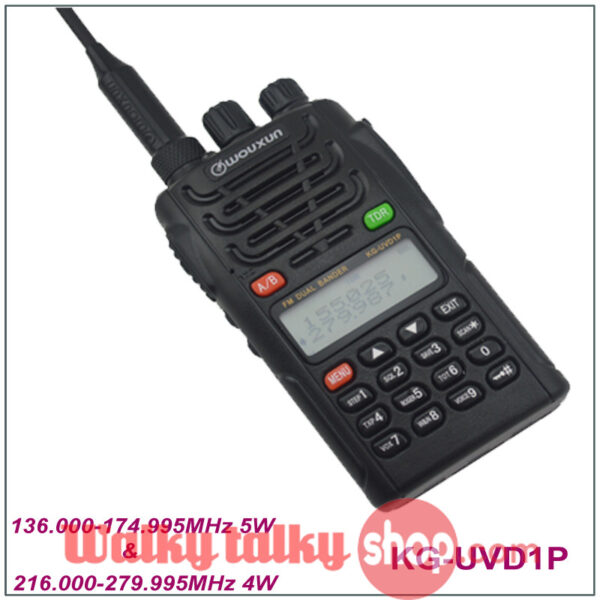

100% New Original Wouxun KG-UVD1P Dual Band Radio 136.000-174.995MHz &216.000-279.995MHz FM Transceiver

Features:

1.Dual Band,Dual Frequency,Dual Display and Dual Standby

2.Frequency Range: 136.000-174.995MHz & 216.000-279.995MHz(RX/TX)

3.Working mode: U-V,V-V or U-U selectable

4.Channel setting: VHF TX & UHF Rx or UHF TX & VHF RX selectable

5.DTMF encoding

6.Digital FM Radio (76-108MHz)

7.CTCSS/DCS Scan

8.Output power: 5W VHF/4W UHF

9.128 memory channels

10.VOX

11.Stopwatch timer function

12.105 groups DCS and 50 groups CTCSS

13.Voice guide

14.SOS Funtion

15.Wide/Narrow bandwidth selection(25/12.5KHz)

16.Multi-display modes(Channel order number/channel frequency/channel name selectable)

17.Reverse frequency

18.Multi-functional scan modes.

19.Priority scan function

20.Bright flashlight illumination

21.Frequency steps selectable (5/6.25/10/12.5/25/50/100KHz)

22.High/Low power changeable when transmitting

23.High capacity Li-ion batterypack

24.Intelligent charger

25.Offset frequency setting (0-69.950MHz)

26.Frequency shift direction setting

27.Busy channel lockout

28.Power-on message (Battery-V/Full screen/Other Characters)

29.Low voltage prompt

30.Transmitting beginning/ending prompt

31.Transmitting overtime prompt

32.Keypad lock(Auto/Manual)

33.Adding scanning channel

34.Programmable by Computer

35.Wire-clone function

36.Menu/Channel reset

37.1750Hz burst tone

38.IP55 Waterproof

Specifications:

Frequency Range	76-108MHz(RX)
	136.000-174.995MHz & 216.000-279.995MHz (Rx/Tx)
Memory Channels	128 channels
Operating Voltage	7.4V
Operating Temperature	-30°c to +60°c
Working Mode	Co-channel or Dis-channel simplex
Output Power	VHF;5W/ UHF:4W
Modulation	F3E(FM)
Max. Frequency Deviation	≤±5KHz
Spurious Radiation	<-60dB
Frequency Stability	±2.5ppm
Receive Sensitivity	<0.2μV
Audio Output Power	≥500mW
Waterproof	IP55
Dimensions	61×119.5×37.5(mm)
Weight	248g
NOTE: Specifications are subject to change without prior notice.

Each Set Package Contain:

1× KG-UVD1P Dual Band 136.000-174.995MHz & 216.000-279.995MHz Radio

1× 1400mAh Li-ion Battery Pack

1× Desktop Charger w/Adapter

1× 136-174 & 216-240MHz SMA-Female Antenna

1× 136-174 & 240-280MHz SMA-Female Antenna

1× Belt Clip

1× 12V Car Charger

1× Hand Strap

1× User’s Manual
